RunCam Split 3 Micro FPV Camera + HD Recorder

RunCam Split 3 micro is the dream camera for many FPV racer, it's a FPV camera + GoPro 2-in-1, the camera is connected to a PCB (stack it on FC w/ 20mm x 20mm mounting), there is a Micro SD card slot on this board, when you connect battery to the drone and it'll start recording, when you're done flying, simply press the "Stop recording" button on the PCB and unplug drone's battery, basically like you're using a GoPro.

The RunCam Split 3 Micro is super lightweight (14 g), that's a big advantage for FPV race drone. With very low latency video feed, so you can still get very real-time video to your FPV goggle. Recording in 1080p 60fps, with file protection feature which means the video file is saved when power is cut.










Specifications :

• Field of View (FOV) : Recording FOV 165°(FPV FOV: 165° @16:9, 130° @4:3)
• Lens Thread Size : M12*0.5
• Video Resolution : 1080@60fps/1080@50fps/1080@30fps/720@60fps
• Video File Format : MOV
• Image Resolution : 2 Megapixels
• TV Mode : NTSC (720*480)/PAL (720*576) Switchable

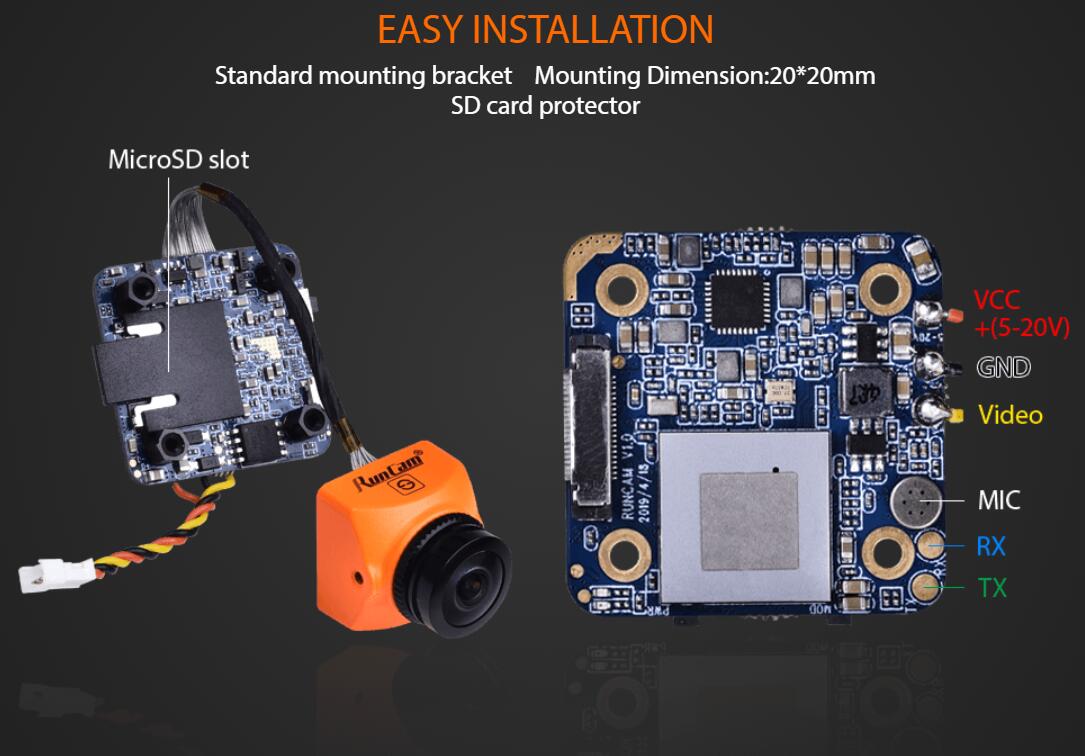

• Interface : JST 1.25mm / UART
• Max Micro SD Card Supported : 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
• Hole Distance of Installation : 20*20mm

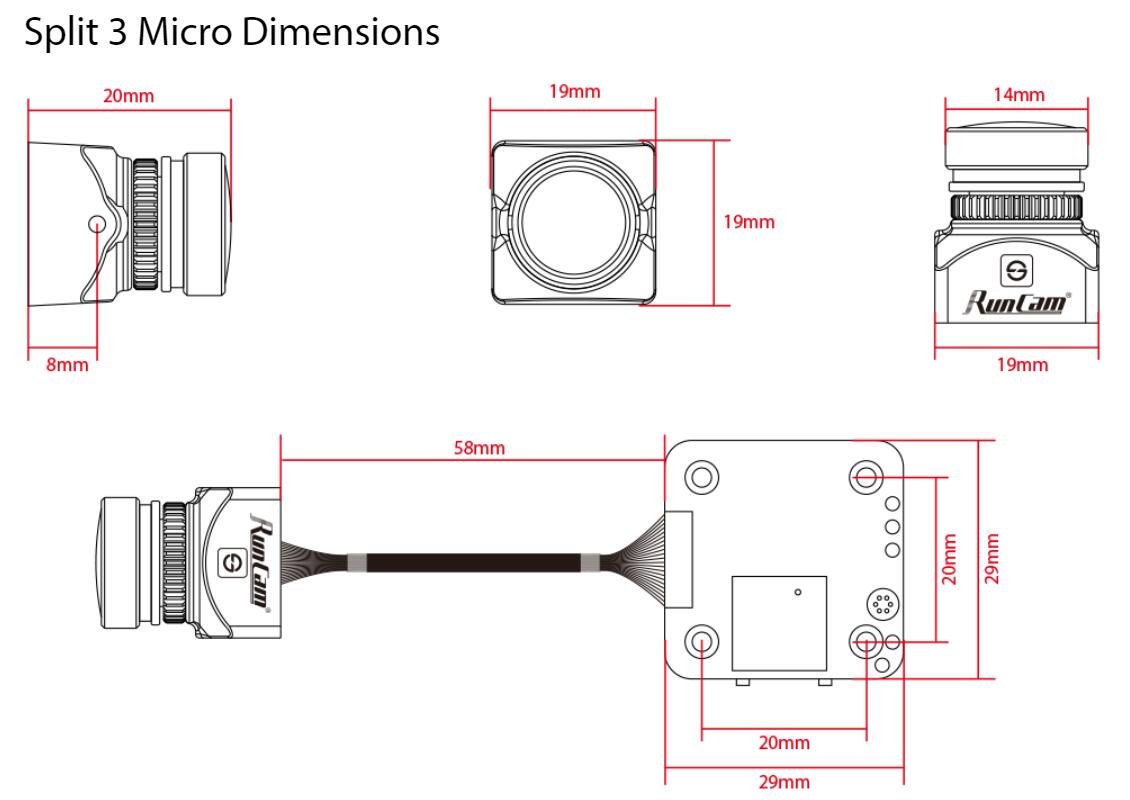

• Dimensions : PCB 29*29mm/Lens Module 19*19mm
• Lens Specs : M12
• Power Input : DC 5-20V (Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
• Working Current : 650mA @5V / 270mA @12V
• Net Weight : 14g

Product Status : In-Stock
